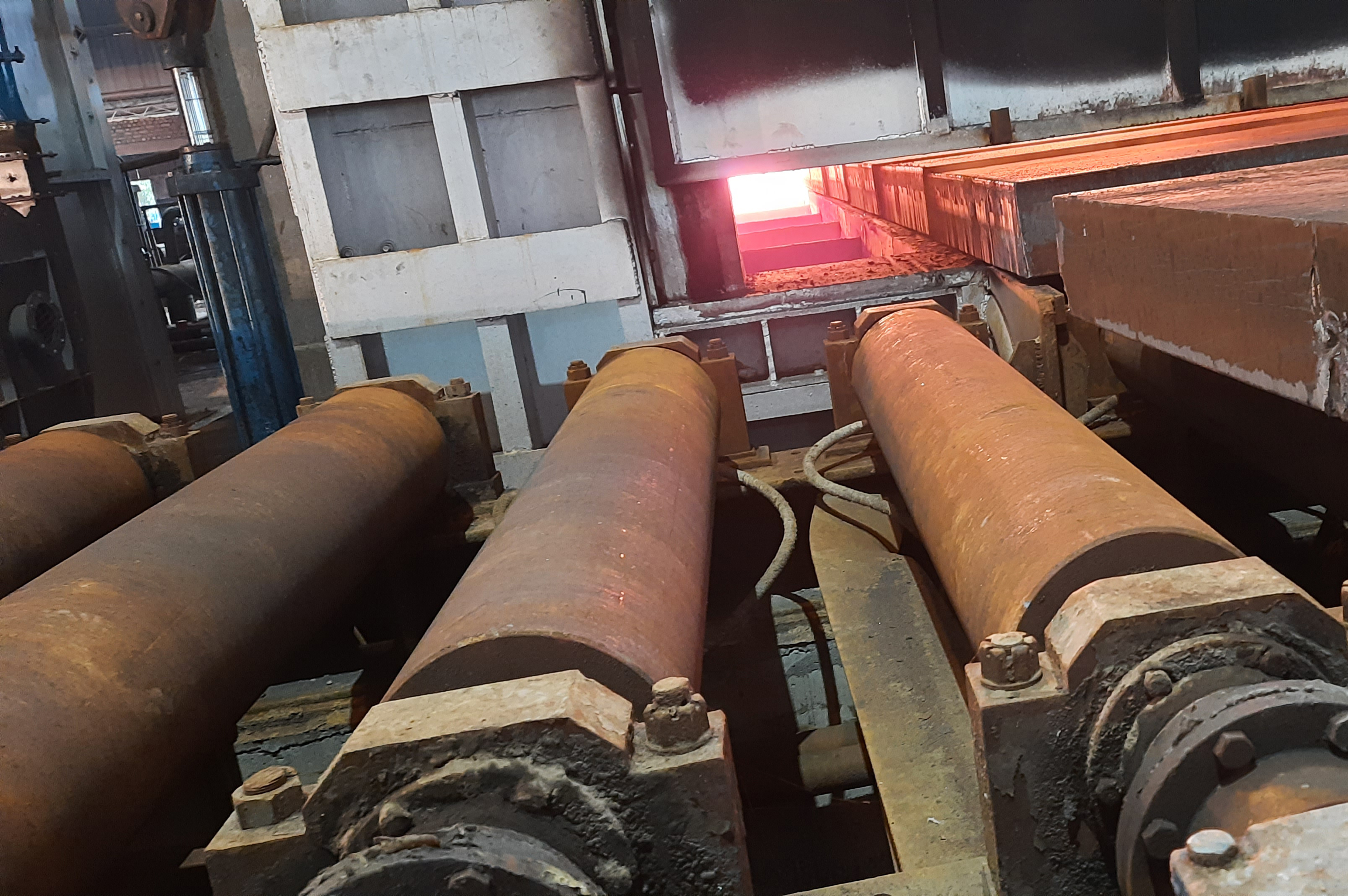

Pusher Type Billet Reheating Furnace

A reheating furnace is a type of industrial furnace used mainly for Reheating of MS Billets for End Product of Coil, Rebar, Channels, Beams and Angles etc.

Pusher type Reheating Furnaces: This is Normal Pusher Furnace where billets were pushed on furnace hearth by Charging Pusher and were discharged from Furnace with Discharge Ejector.

In normal Pusher Furnace Burners were fired on Top portion of Charge. Furnace is charged with billets from charging to Discharge Door of Furnace, Billets were pushed with charging pusher, whole furnace is filled with billets on hearth with billets touching each other.

Temperature Control: Accurate temperature control is crucial to ensure the metal is heated uniformly and to the correct temperature. This is typically managed through sophisticated temperature monitoring and control systems. We can provide Mass Flow type temperature control for accurate measurement of Fuel and Air to control the furnace temperature accurately.

Energy Efficiency: Modern reheating furnaces are designed to be energy-efficient, often incorporating heat recovery system like RECUPERATOR to utilize the heat from exhaust gases to preheat Combustion air. We can get Hot Air Up to 400 - 450 Deg C from waste Flue Gases.

Fuel - PNG / LPG / FO / LDO / Pulverised Coal
Billet Discharge - Discharge Ejector for Side Discharge / End Discharge
Charging - Hydraulic or Mechanical Charging Pusher
Furnace Capacity range - 6 TPH to 60 TPH
